Time series recurrent pattern (motif) discovery using CLI

1. Introduction

We work through the same use cases as in the GUI tutorial, this time from the command line.

All transcripts below were captured with GrammarViz 3.0.4 (grammarviz2-3.0.4-jar-with-dependencies.jar, built with mvn package -DskipTests from the source). Timings will vary with your hardware.

2. Datasets used

Two datasets are used in this demo:

2.1. Winding dataset

This dataset is a snapshot of data collected from an industrial winding process (the DaISy collection’s test setup of an industrial winding process); its column #2 corresponds to the traction reel angular speed. A single-column extract ships with GrammarViz as data/winding_col.txt:

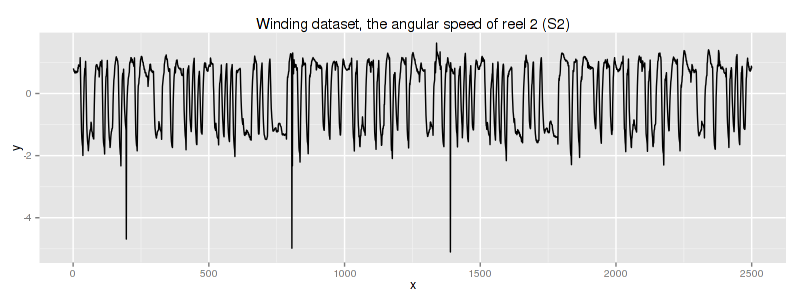

The winding dataset: traction reel angular speed over 2,500 samples

2.2. QTDB 0606 ECG dataset

The database record can be downloaded from the PhysioNet QT Database and converted into text format with

rdsamp -r sele0606 -f 120.000 -l 60.000 -p -c | sed -n '701,3000p' >0606.csv

(assuming rdsamp from the WFDB toolkit is installed on your system). We use the second column of this file; a ready-made copy ships with GrammarViz as data/ecg0606_1.csv:

Overview plot of the 2,299-point QTDB 0606 ECG excerpt

3. Using the CLI

Following the build instructions in the source repository produces the stand-alone jar grammarviz2-3.0.4-jar-with-dependencies.jar, which we use below.

Running the jar as usual (java -jar ...) starts the GUI, so for CLI work we specify the class implementing the command-line interface. Run without parameters, it prints a help message:

$ java -cp "target/grammarviz2-3.0.4-jar-with-dependencies.jar" net.seninp.grammarviz.cli.TS2SequiturGrammar
Usage: <main class> [options]
  Options:
    --alphabet_size, -a
      SAX alphabet size
      Default: 4
    --data_in, -d
      The input file name
    --data_out, -o
      The output file name
    --help, -h

    --num-workers, -n
      Number of worker threads to use for SAX
      Default: 1
    --prune
      Pass to prune rules
      Default: false
    --strategy
      Numerosity reduction strategy
      Default: NONE
      Possible Values: [NONE, EXACT, MINDIST]
    --threshold
      Normalization threshold
      Default: 0.01
    --window_size, -w
      Sliding window size
      Default: 30
    --word_size, -p
      PAA word size
      Default: 6

4. Variable-length recurrent pattern discovery

We use the winding dataset with a sliding window of 100, PAA size 4, alphabet size 3, and the EXACT numerosity reduction strategy:

$ java -cp "target/grammarviz2-3.0.4-jar-with-dependencies.jar" net.seninp.grammarviz.cli.TS2SequiturGrammar \
    -d data/winding_col.txt -o winding_grammar.txt -w 100 -p 4 -a 3 --strategy EXACT
... INFO n.s.g.cli.TS2SequiturGrammar - GrammarViz2 CLI converter v.1
parameters:
  input file:                  data/winding_col.txt
  output file:                 winding_grammar.txt
  SAX sliding window size:     100
  SAX PAA size:                4
  SAX alphabet size:           3
  SAX numerosity reduction:    EXACT
  SAX normalization threshold: 0.01
  Pruning rules:               false

... INFO n.s.g.cli.TS2SequiturGrammar - read 2500 points from data/winding_col.txt
... INFO n.s.g.cli.TS2SequiturGrammar - Performing SAX conversion ...
... INFO n.s.g.cli.TS2SequiturGrammar - Inferring Sequitur grammar ...
... INFO n.s.g.cli.TS2SequiturGrammar - Collecting stats ...
... INFO n.s.g.cli.TS2SequiturGrammar - Producing the output ...

This yields the file winding_grammar.txt containing the inferred grammar and, for each rule, the corresponding subsequences.

The description of rule #21 in this file demonstrates the algorithm’s ability to capture repeated patterns much longer than the sliding window: the two subsequences corresponding to this rule are 227 points each — well over twice the window size:

/// R21
R21 -> 'R50 abbb R46 bbba bbca bbba R37 R8 bcac bbac babc cabc R49 bbcb abcb accb',
  expanded rule string: 'cbbb bbbb abbb abbc bbbc bbbb bbba bbca bbba cbba bbba bbbb bcbb bcab bcac bbac babc cabc cabb cacb bacb bbcb abcb accb '
subsequences starts: [497, 1497]
subsequences lengths: [227, 227]
rule occurrence frequency 2
rule use frequency 2
min length 227
max length 227
mean length 227

At the same time, the subsequences corresponding to the most frequent rule, #8, vary in length between 102 and 121 points:

/// R8
R8 -> 'bcbb bcab', expanded rule string: 'bcbb bcab '
subsequences starts: [61, 115, 341, 565, 640, 690, 853, 1565, 1640, 1853, 2060, 2341]
subsequences lengths: [102, 103, 121, 109, 107, 105, 113, 109, 108, 113, 103, 120]
rule occurrence frequency 12
rule use frequency 5
min length 102
max length 121
mean length 109

Similarly, if we process the ECG dataset with sliding window 100, PAA 8, and alphabet 4 (java -cp "target/grammarviz2-3.0.4-jar-with-dependencies.jar" net.seninp.grammarviz.cli.TS2SequiturGrammar -d data/ecg0606_1.csv -o ecg_grammar.txt -w 100 -p 8 -a 4 --strategy EXACT), the algorithm finds that the most frequently occurring rule captures the normal heartbeats, 105 to 107 points long:

/// R7
R7 -> 'bbcbbdab bbcbcdab', expanded rule string: 'bbcbbdab bbcbcdab '
subsequences starts: [62, 209, 506, 652, 798, 943, 1087, 1234, 1384, 1533, 1682, 1828, 1973, 2115]
subsequences lengths: [105, 107, 107, 105, 107, 106, 106, 106, 106, 107, 106, 107, 107, 107]
rule occurrence frequency 14
rule use frequency 4
min length 105
max length 107
mean length 106

5. Discussion

Note that the recurrent pattern discovery technique shown above yields sets of frequent subsequences of variable length. Two factors make this possible: the numerosity reduction embedded in the discretization step, and the nature of GI algorithms, which build their rules from long-range correlations in the input.
